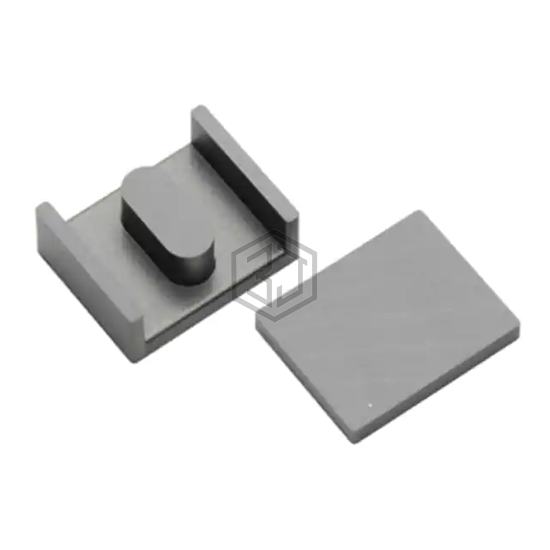

PC95ELT22X8-Z
FERRITE CORE ELT 6.54UH 1SET
PC95ELT22X8-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE ELT 6.54UH 1SET. Key specifications: supplier device package ELT 22 x 8, material PC95, tolerance ±25%.
In Stock: 5,239
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | ELH, PLT |
| Supplier Device Package | ELT 22 x 8 |
| Material | PC95 |
| Diameter | - |
| Inductance Factor (Al) | 6.54 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.41 |
| Effective Length (le) mm | 66.2 |
| Effective Area (Ae) mm² | 27.3 |
| Minimum Core Cross Section (Amin) mm² | 64.2 |
| Effective Magnetic Volume (Ve) mm³ | 1810 |
| Finish | Uncoated |
| Height | 0.237" (6.02mm) |
| Length | 0.866" (22.00mm) |
| Width | 0.693" (17.60mm) |
Frequently Asked Questions
PC95ELT22X8-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE ELT 6.54UH 1SET
The package type of PC95ELT22X8-Z is ELT 22 x 8.
The material of PC95ELT22X8-Z is PC95.
The tolerance of PC95ELT22X8-Z is ±25%.
