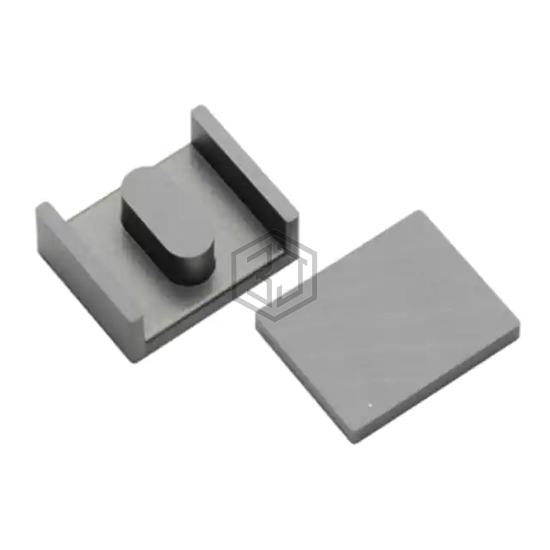

PC95ELT18X7.3-Z
FERRITE CORE ELT 4.76UH 1SET
PC95ELT18X7.3-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE ELT 4.76UH 1SET. Key specifications: supplier device package ELT 18 x 7.3, material PC95, tolerance ±25%.
In Stock: 6,083
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | ELH, PLT |
| Supplier Device Package | ELT 18 x 7.3 |
| Material | PC95 |
| Diameter | - |
| Inductance Factor (Al) | 4.76 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.54 |
| Effective Length (le) mm | 44.3 |
| Effective Area (Ae) mm² | 23.8 |
| Minimum Core Cross Section (Amin) mm² | 43 |
| Effective Magnetic Volume (Ve) mm³ | 1050 |
| Finish | Uncoated |
| Height | 0.222" (5.65mm) |
| Length | 0.709" (18.00mm) |
| Width | 0.567" (14.40mm) |
Frequently Asked Questions
PC95ELT18X7.3-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE ELT 4.76UH 1SET
The package type of PC95ELT18X7.3-Z is ELT 18 x 7.3.
The material of PC95ELT18X7.3-Z is PC95.
The tolerance of PC95ELT18X7.3-Z is ±25%.
