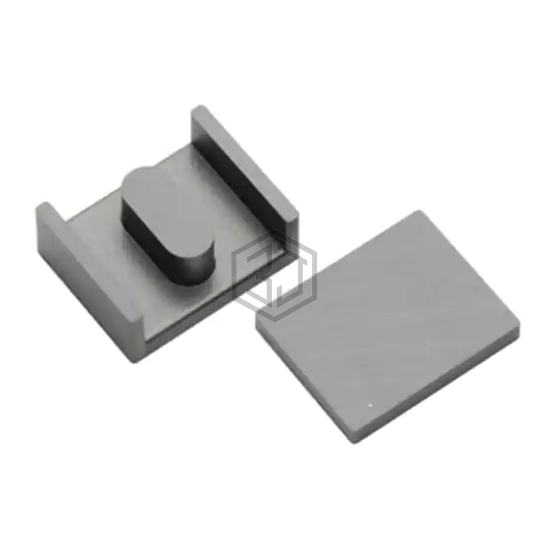

FERRITE CORE ELT 3.68UH 1SET
PC95ELT15.5X5.8-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE ELT 3.68UH 1SET. Key specifications: supplier device package ELT 15.5 x 5.8, material PC95, tolerance ±25%.
In Stock: 2,402
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | ELH, PLT |
| Supplier Device Package | ELT 15.5 x 5.8 |
| Material | PC95 |
| Diameter | - |
| Inductance Factor (Al) | 3.68 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.6 |
| Effective Length (le) mm | 32.9 |
| Effective Area (Ae) mm² | 19.6 |
| Minimum Core Cross Section (Amin) mm² | 31.9 |
| Effective Magnetic Volume (Ve) mm³ | 646 |
| Finish | Uncoated |
| Height | 0.174" (4.42mm) |
| Length | 0.610" (15.50mm) |
| Width | 0.488" (12.40mm) |
Submit your RFQ for PC95ELT15.5X5.8-Z and get a quote within 24 hours.
