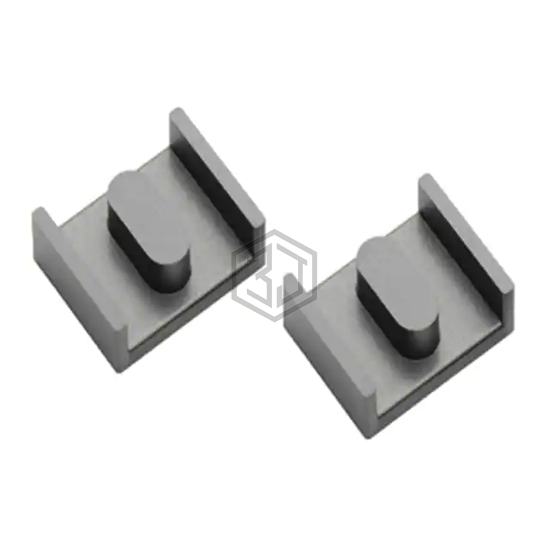

PC95EL13X4.4-Z
FERRITE CORE EL 3.16UH 2PC SET
PC95EL13X4.4-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE EL 3.16UH 2PC SET. Key specifications: supplier device package EI 13 x 4.4, material PC95, tolerance ±25%.
In Stock: 79
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | EL |
| Supplier Device Package | EI 13 x 4.4 |
| Material | PC95 |
| Diameter | - |
| Inductance Factor (Al) | 3.16 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.67 |
| Effective Length (le) mm | 23.1 |
| Effective Area (Ae) mm² | 15.4 |
| Minimum Core Cross Section (Amin) mm² | 22.4 |
| Effective Magnetic Volume (Ve) mm³ | 357 |
| Finish | Uncoated |
| Height | 0.089" (2.25mm) |
| Length | 0.512" (13.00mm) |
| Width | 0.409" (10.40mm) |
Frequently Asked Questions
PC95EL13X4.4-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE EL 3.16UH 2PC SET
The package type of PC95EL13X4.4-Z is EI 13 x 4.4.
The material of PC95EL13X4.4-Z is PC95.
The tolerance of PC95EL13X4.4-Z is ±25%.
