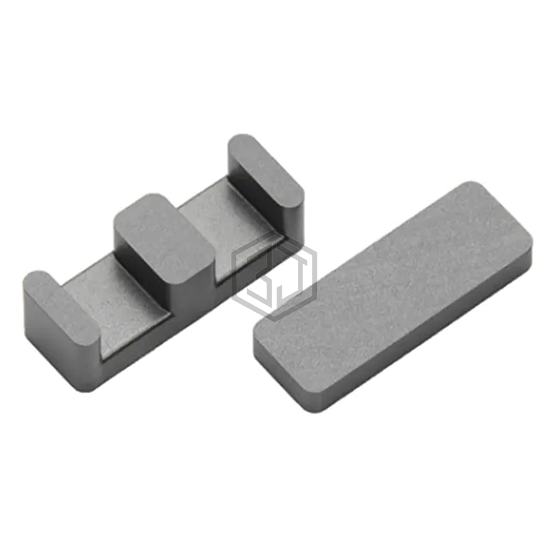

PC95EI14/5/5-Z
FERRITE CORE EI 1.55UH 1SET
PC95EI14/5/5-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE EI 1.55UH 1SET. Key specifications: supplier device package EI 14 x 5 x 5, material PC95, tolerance ±25%.
In Stock: 83
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | HE, PLT |
| Supplier Device Package | EI 14 x 5 x 5 |
| Material | PC95 |
| Diameter | - |
| Inductance Factor (Al) | 1.55 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1.11 |
| Effective Length (le) mm | 15 |
| Effective Area (Ae) mm² | 16.7 |
| Minimum Core Cross Section (Amin) mm² | 15 |
| Effective Magnetic Volume (Ve) mm³ | 251 |
| Finish | Uncoated |
| Height | 0.197" (5.00mm) |
| Length | 0.551" (14.00mm) |
| Width | 0.197" (5.00mm) |
Frequently Asked Questions
PC95EI14/5/5-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE EI 1.55UH 1SET
The package type of PC95EI14/5/5-Z is EI 14 x 5 x 5.
The material of PC95EI14/5/5-Z is PC95.
The tolerance of PC95EI14/5/5-Z is ±25%.
