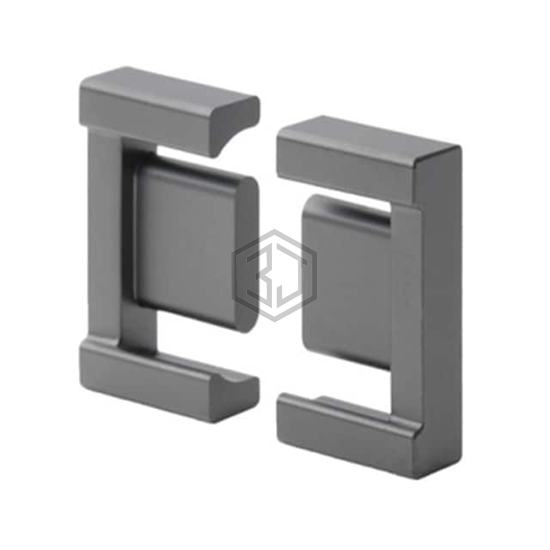

PC47EPC30-Z
FERRITE CORE EPC 1.57UH 2PC SET
PC47EPC30-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE EPC 1.57UH 2PC SET. Key specifications: supplier device package EPC 30, material PC47, tolerance ±25%.
In Stock: 9,741
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | EPC |
| Supplier Device Package | EPC 30 |
| Material | PC47 |
| Diameter | - |
| Inductance Factor (Al) | 1.57 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1.35 |
| Effective Length (le) mm | 75.3 |
| Effective Area (Ae) mm² | 55.6 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 4190 |
| Finish | Uncoated |
| Height | 0.689" (17.50mm) |
| Length | 1.185" (30.10mm) |
| Width | 0.315" (8.00mm) |
Frequently Asked Questions
PC47EPC30-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE EPC 1.57UH 2PC SET
The package type of PC47EPC30-Z is EPC 30.
The material of PC47EPC30-Z is PC47.
The tolerance of PC47EPC30-Z is ±25%.
