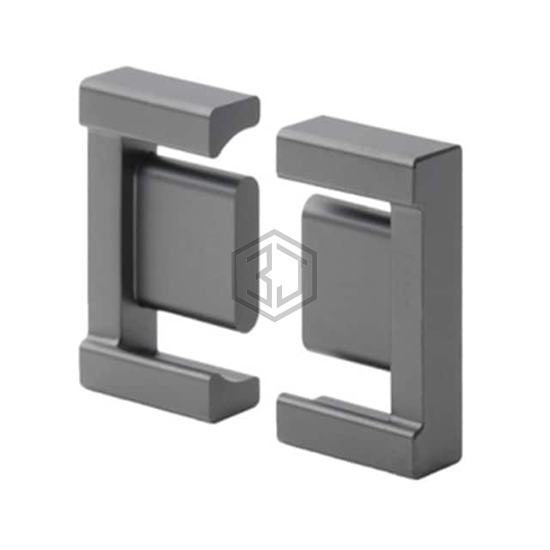

PC47EPC27-Z
FERRITE CORE EPC 1.54UH 2PC SET
PC47EPC27-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE EPC 1.54UH 2PC SET. Key specifications: supplier device package EPC 27, material PC47, tolerance ±25%.
In Stock: 7,195
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | EPC |
| Supplier Device Package | EPC 27 |
| Material | PC47 |
| Diameter | - |
| Inductance Factor (Al) | 1.54 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1.43 |
| Effective Length (le) mm | 69.4 |
| Effective Area (Ae) mm² | 48.6 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 3370 |
| Finish | Uncoated |
| Height | 0.630" (16.00mm) |
| Length | 1.067" (27.10mm) |
| Width | 0.315" (8.00mm) |
Frequently Asked Questions
PC47EPC27-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE EPC 1.54UH 2PC SET
The package type of PC47EPC27-Z is EPC 27.
The material of PC47EPC27-Z is PC47.
The tolerance of PC47EPC27-Z is ±25%.
