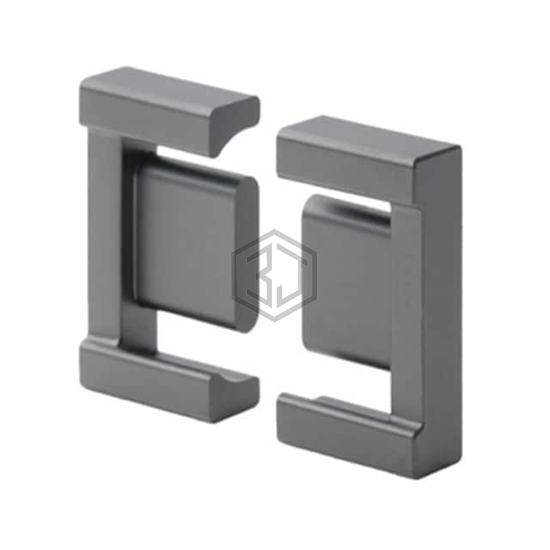

PC47EPC19-Z
FERRITE CORE EPC 940NH 2PC SET
PC47EPC19-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE EPC 940NH 2PC SET. Key specifications: supplier device package EPC 19, material PC47, tolerance ±25%.
In Stock: 353
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | EPC |
| Supplier Device Package | EPC 19 |
| Material | PC47 |
| Diameter | - |
| Inductance Factor (Al) | 940 nH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 2.03 |
| Effective Length (le) mm | 46.1 |
| Effective Area (Ae) mm² | 22.7 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 1050 |
| Finish | Uncoated |
| Height | 0.384" (9.78mm) |
| Length | 0.752" (19.10mm) |
| Width | 0.236" (6.00mm) |
Frequently Asked Questions
PC47EPC19-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE EPC 940NH 2PC SET
The package type of PC47EPC19-Z is EPC 19.
The material of PC47EPC19-Z is PC47.
The tolerance of PC47EPC19-Z is ±25%.
