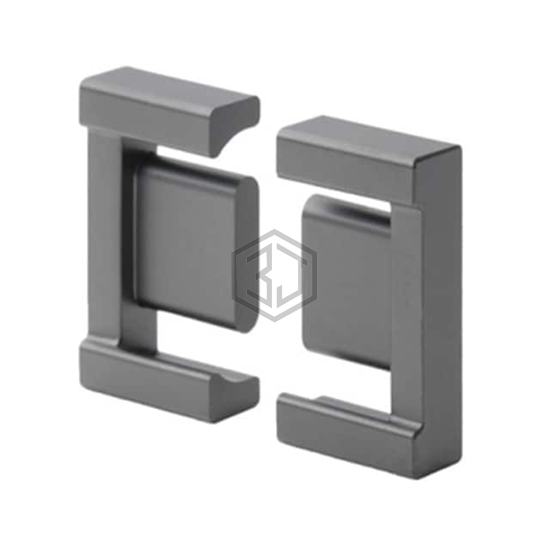

PC47EPC13-Z
FERRITE CORE EPC 870NH 2PC SET
PC47EPC13-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE EPC 870NH 2PC SET. Key specifications: supplier device package EPC 13, material PC47, tolerance ±25%.
In Stock: 1,657
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | EPC |
| Supplier Device Package | EPC 13 |
| Material | PC47 |
| Diameter | - |
| Inductance Factor (Al) | 870 nH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 2.45 |
| Effective Length (le) mm | 30.6 |
| Effective Area (Ae) mm² | 12.5 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 382 |
| Finish | Uncoated |
| Height | 0.260" (6.60mm) |
| Length | 0.522" (13.25mm) |
| Width | 0.181" (4.60mm) |
Frequently Asked Questions
PC47EPC13-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE EPC 870NH 2PC SET
The package type of PC47EPC13-Z is EPC 13.
The material of PC47EPC13-Z is PC47.
The tolerance of PC47EPC13-Z is ±25%.
