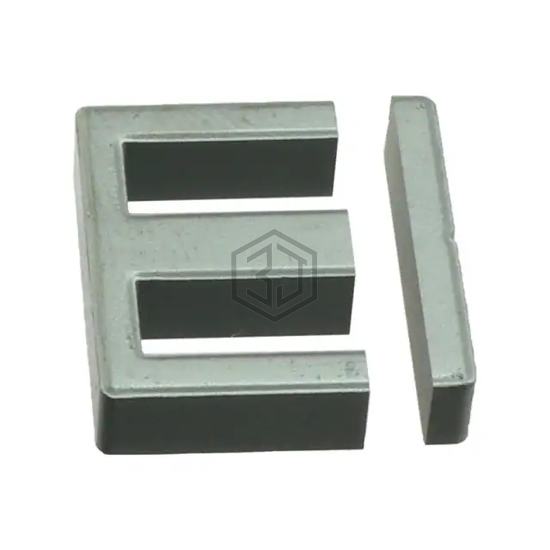

PC47EI40-Z
EI CORE SMPS TRANSFORMER 1 SET
PC47EI40-Z is a Ferrite Cores manufactured by TDK Corporation. EI CORE SMPS TRANSFORMER 1 SET. Key specifications: material PC47, tolerance ±25%.
In Stock: 148
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | E |
| Supplier Device Package | - |
| Material | PC47 |
| Diameter | - |
| Inductance Factor (Al) | 4.86 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2500 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.52 |
| Effective Length (le) mm | 77 |
| Effective Area (Ae) mm² | 148 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 11400 |
| Finish | Uncoated |
| Height | - |
| Length | 1.575" (40.00mm) |
| Width | - |
Frequently Asked Questions
PC47EI40-Z is a Ferrite Cores manufactured by TDK Corporation. EI CORE SMPS TRANSFORMER 1 SET
The material of PC47EI40-Z is PC47.
The tolerance of PC47EI40-Z is ±25%.
