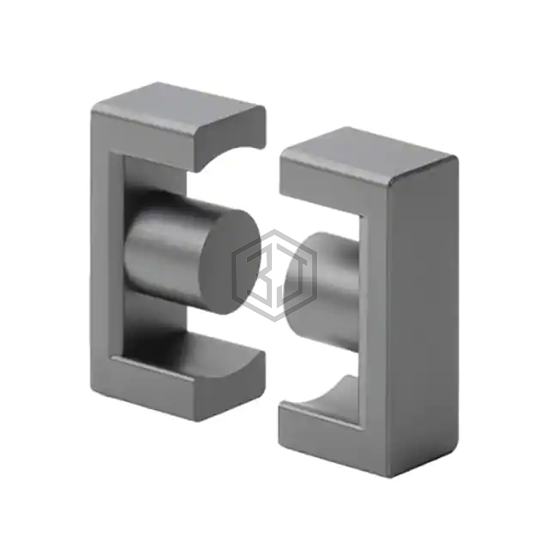

PC47EER49-Z
FERRITE CORE EER 6.25UH 2PC SET
PC47EER49-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE EER 6.25UH 2PC SET. Key specifications: supplier device package EER 49, material PC47, tolerance ±25%.
In Stock: 3,610
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | E |
| Supplier Device Package | EER 49 |
| Material | PC47 |
| Diameter | - |
| Inductance Factor (Al) | 6.25 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.4 |
| Effective Length (le) mm | 91.3 |
| Effective Area (Ae) mm² | 231 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 21100 |
| Finish | Uncoated |
| Height | 0.748" (19.00mm) |
| Length | 1.929" (49.00mm) |
| Width | 0.677" (17.20mm) |
Frequently Asked Questions
PC47EER49-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE EER 6.25UH 2PC SET
The package type of PC47EER49-Z is EER 49.
The material of PC47EER49-Z is PC47.
The tolerance of PC47EER49-Z is ±25%.
