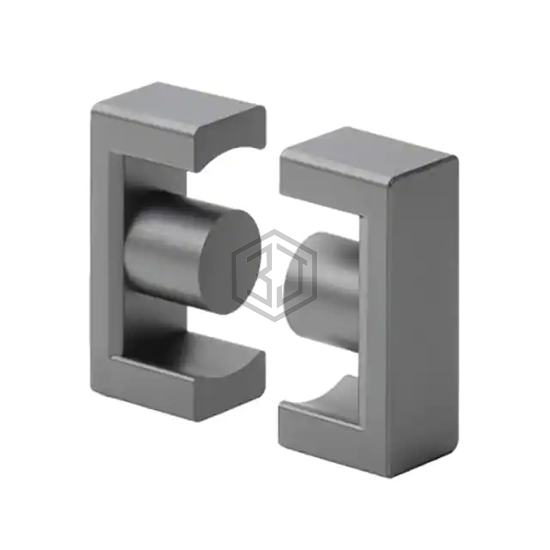

PC47EER35-Z
FERRITE CORE EER 2.77UH 2PC SET
PC47EER35-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE EER 2.77UH 2PC SET. Key specifications: supplier device package EER 35, material PC47, tolerance ±25%.
In Stock: 6,276
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | E |
| Supplier Device Package | EER 35 |
| Material | PC47 |
| Diameter | - |
| Inductance Factor (Al) | 2.77 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.85 |
| Effective Length (le) mm | 90.8 |
| Effective Area (Ae) mm² | 107 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 9720 |
| Finish | Uncoated |
| Height | 0.815" (20.70mm) |
| Length | 1.378" (35.00mm) |
| Width | 0.445" (11.30mm) |
Frequently Asked Questions
PC47EER35-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE EER 2.77UH 2PC SET
The package type of PC47EER35-Z is EER 35.
The material of PC47EER35-Z is PC47.
The tolerance of PC47EER35-Z is ±25%.
