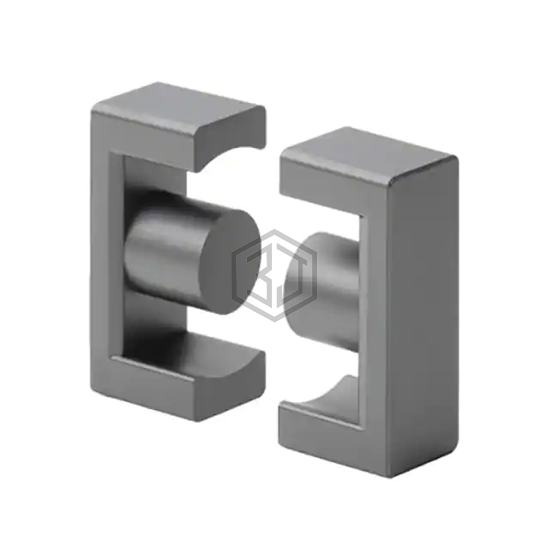

PC47EER28-Z
FERRITE CORE EER 2.87UH 2PC SET
PC47EER28-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE EER 2.87UH 2PC SET. Key specifications: supplier device package EER 28, material PC47, tolerance ±25%.
In Stock: 136
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | E |
| Supplier Device Package | EER 28 |
| Material | PC47 |
| Diameter | - |
| Inductance Factor (Al) | 2.87 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.78 |
| Effective Length (le) mm | 64 |
| Effective Area (Ae) mm² | 82.1 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 5250 |
| Finish | Uncoated |
| Height | 0.551" (14.00mm) |
| Length | 1.124" (28.55mm) |
| Width | 0.449" (11.40mm) |
Frequently Asked Questions
PC47EER28-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE EER 2.87UH 2PC SET
The package type of PC47EER28-Z is EER 28.
The material of PC47EER28-Z is PC47.
The tolerance of PC47EER28-Z is ±25%.
