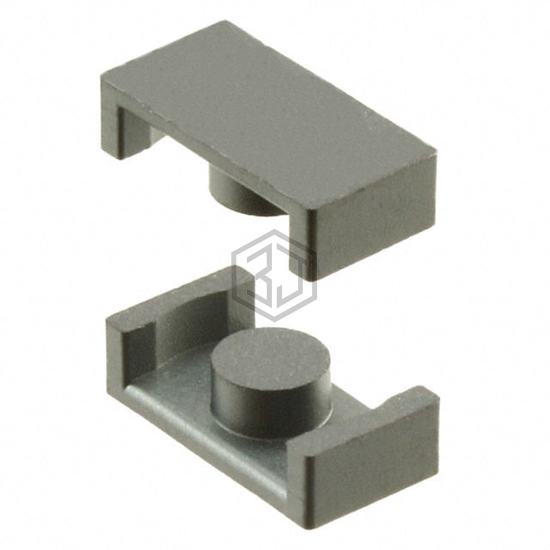

PC44ER9.5/5-Z
FERRITE CORE 2PC SET
PC44ER9.5/5-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE 2PC SET. Key specifications: supplier device package ER 9.5 x 5, material PC44.
In Stock: 3,688
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | ER |
| Supplier Device Package | ER 9.5 x 5 |
| Material | PC44 |
| Diameter | - |
| Inductance Factor (Al) | - |
| Tolerance | - |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1.68 |
| Effective Length (le) mm | 14.2 |
| Effective Area (Ae) mm² | 8.47 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 120 |
| Finish | Uncoated |
| Height | 0.193" (4.90mm) |
| Length | 0.368" (9.35mm) |
| Width | - |
Frequently Asked Questions
PC44ER9.5/5-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE 2PC SET
The package type of PC44ER9.5/5-Z is ER 9.5 x 5.
The material of PC44ER9.5/5-Z is PC44.
