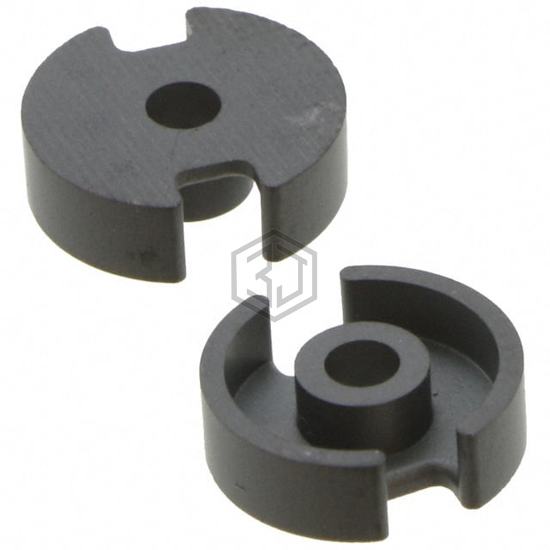

PC40P9/5Z-52H
FERRITE CORE 2PC SET
PC40P9/5Z-52H is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE 2PC SET. Key specifications: supplier device package P 9 x 5, material PC40.
In Stock: 4,732
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Core Type | P (Pot Core) |
| Supplier Device Package | P 9 x 5 |
| Material | PC40 |
| Diameter | 0.288" (7.33mm) |
| Inductance Factor (Al) | - |
| Tolerance | - |
| Gap | Ungapped |
| Effective Permeability (µe) | 821 |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1.24 |
| Effective Length (le) mm | 12.4 |
| Effective Area (Ae) mm² | 10 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 124 |
| Finish | Uncoated |
| Height | 0.136" (3.45mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
PC40P9/5Z-52H is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE 2PC SET
The package type of PC40P9/5Z-52H is P 9 x 5.
The material of PC40P9/5Z-52H is PC40.
Yes, PC40P9/5Z-52H is listed as Last Time Buy. Consider requesting a quote for alternative parts.
