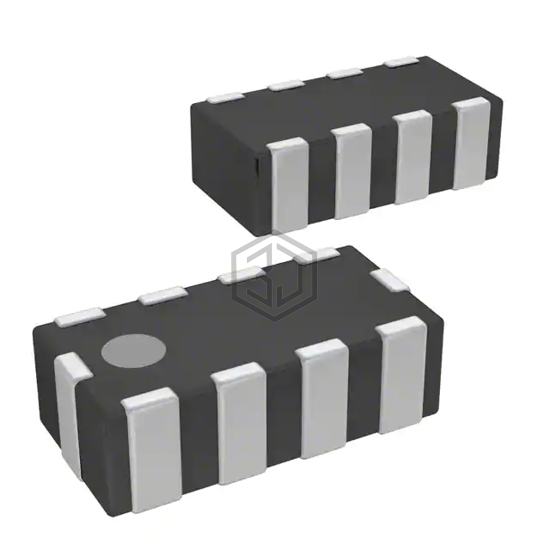

FILTER LC 8PF 280MHZ SMD
MEA1608LC080T001 is a EMI/RFI Filters (LC, RC Networks) manufactured by TDK Corporation. FILTER LC 8PF 280MHZ SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 6.3V, package / case 0603 (1608 Metric), Array, 10 PC Pad.
In Stock: 1,280
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | LC |
| Number of Channels | 4 |
| Center / Cutoff Frequency | 280MHz (Cutoff) |
| Attenuation Value | 20dB @ 800MHz ~ 4GHz |
| Resistance - Channel (Ohms) | - |
| Current | 100 mA |
| Values | C = 8pF |
| ESD Protection | No |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | 6.3V |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric), Array, 10 PC Pad |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Height | 0.024" (0.60mm) |
Submit your RFQ for MEA1608LC080T001 and get a quote within 24 hours.
