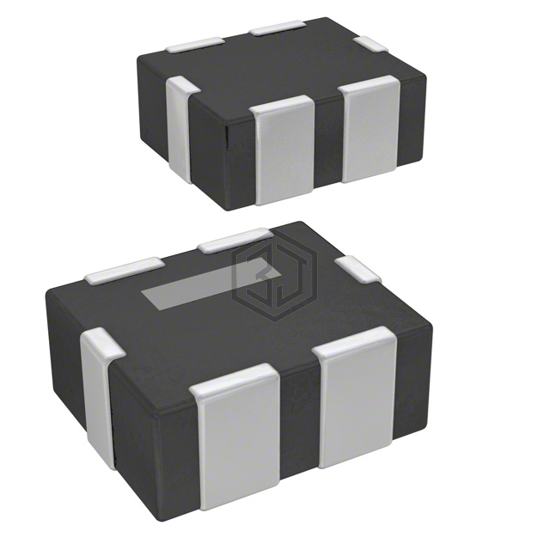

FILTER LC(PI) 15PF 430MHZ SMD
MEA1210PH150T001 is a EMI/RFI Filters (LC, RC Networks) manufactured by TDK Corporation. FILTER LC(PI) 15PF 430MHZ SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 6.3V, package / case 0504 (1210 Metric), Array, 6 PC Pad.
In Stock: 3,820
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Low Pass |
| Filter Order | 3rd |
| Technology | LC (Pi) |
| Number of Channels | 2 |
| Center / Cutoff Frequency | 430MHz (Cutoff) |
| Attenuation Value | 20dB @ 800MHz ~ 3GHz |
| Resistance - Channel (Ohms) | - |
| Current | 100 mA |
| Values | C = 15pF |
| ESD Protection | No |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | 6.3V |
| Mounting Type | Surface Mount |
| Package / Case | 0504 (1210 Metric), Array, 6 PC Pad |
| Size / Dimension | 0.047" L x 0.039" W (1.20mm x 1.00mm) |
| Height | 0.024" (0.60mm) |
Submit your RFQ for MEA1210PH150T001 and get a quote within 24 hours.
