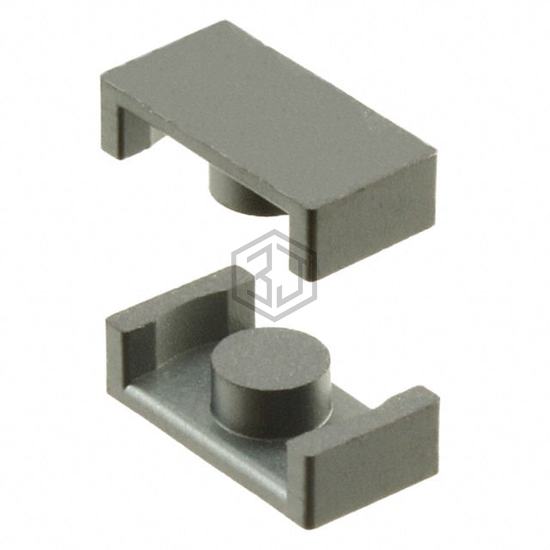

H5C2ER9.5/5-Z
FERRITE CORE 2PC SET
H5C2ER9.5/5-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE 2PC SET. Key specifications: supplier device package ER 9.5 x 5, material H5C2.
In Stock: 44
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | ER |
| Supplier Device Package | ER 9.5 x 5 |
| Material | H5C2 |
| Diameter | - |
| Inductance Factor (Al) | - |
| Tolerance | - |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | - |
| Effective Length (le) mm | - |
| Effective Area (Ae) mm² | - |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | - |
| Finish | Uncoated |
| Height | 0.197" (5.00mm) |
| Length | 0.374" (9.50mm) |
| Width | 0.197" (5.00mm) |
Frequently Asked Questions
H5C2ER9.5/5-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE 2PC SET
The package type of H5C2ER9.5/5-Z is ER 9.5 x 5.
The material of H5C2ER9.5/5-Z is H5C2.
