3~5GHZ ULTRA-WIDE BAND (UWB) SMD

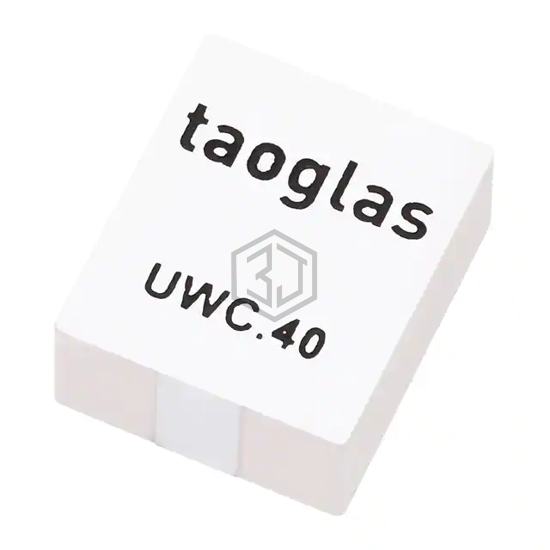

UWC.40 is a RF Antennas manufactured by Taoglas Limited. 3~5GHZ ULTRA-WIDE BAND (UWB) SMD. Key specifications: mounting type Surface Mount, termination Solder, power - max 10 W, frequency range 3.1GHz ~ 4.75GHz.
In Stock: 1,979
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | - |
| Frequency Group | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 3.49GHz, 3.985GHz, 3.99GHz, 4.49GHz |
| Frequency Range | 3.1GHz ~ 4.75GHz |
| Antenna Type | Chip |
| Number of Bands | 4 |
| VSWR | 2.5, 2.8, 3.8, 2.8 |
| Return Loss | -7.5dB, -6.5dB, -5dB, -5dB |
| Gain | 3.5dBi, 4.5dBi, 4dBi, 4dBi |
| Power - Max | 10 W |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.118" (3.00mm) |
| Applications | General Purpose |
Submit your RFQ for UWC.40 and get a quote within 24 hours.
