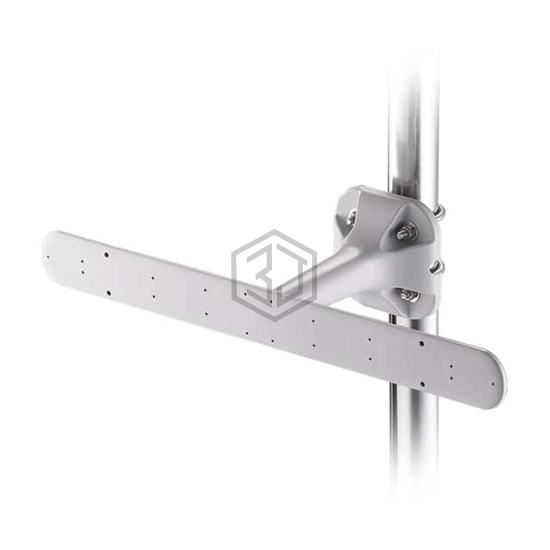

LWB01.A.505111 EXTERNAL 4G LTE W
LWB01.A.505111 is a RF Antennas manufactured by Taoglas Limited. LWB01.A.505111 EXTERNAL 4G LTE W. Key specifications: mounting type Bracket Mount, termination SMA Male, ingress protection IP67, frequency range 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz.
In Stock: 5,122
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, General ISM |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 752MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz |
| Antenna Type | Whip, Straight |
| Number of Bands | 7 |
| VSWR | - |
| Return Loss | - |
| Gain | 1.89dBi, 2.64dBi, 2.4dBi, 2.02dBi, 1.71dBi, 1.29dBi, 1.33dBi |
| Power - Max | - |
| Features | Cable - 5m |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Bracket Mount |
| Height (Max) | 6.181" (157.00mm) |
| Applications | DCS, GSM, LTE, PCS, UMTS |
Submit your RFQ for LWB01.A.505111 and get a quote within 24 hours.
