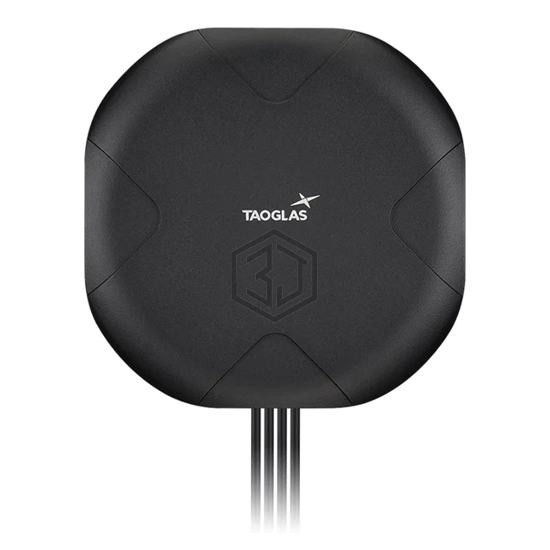

TGX.04.A.001 - Taoglas Limited - RF Antennas

TGX.04.A.001

Taoglas Limited

450-6000MHZ CROSS POLARISED WIDE

TGX.04.A.001 is a RF Antennas manufactured by Taoglas Limited. 450-6000MHZ CROSS POLARISED WIDE. Key specifications: mounting type Pole, Wall Mount, termination SMA Male, ingress protection IP67, power - max 10 W.

In Stock: 43

Product Attributes

AttributeValue
Product StatusActive
RF Family/StandardCellular, WiFi
Frequency GroupWide Band
Frequency (Center/Band)450MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz
Frequency Range430MHz ~ 470MHz, 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz
Antenna TypeModule
Number of Bands9
VSWR-
Return Loss-
Gain1dBi, 1.9dBi, 2.7dBi, 2.8dBi, 3.1dBi, 4.2dBi, 4.3dBi, 3.5dBi, 2.3dBi
Power - Max10 W
Features-
TerminationSMA Male
Ingress ProtectionIP67
Mounting TypePole, Wall Mount
Height (Max)5.866" (149.00mm)
Applications3G, 4G, 5G, LTE, Wi-Fi

Frequently Asked Questions

TGX.04.A.001 is a RF Antennas manufactured by Taoglas Limited. 450-6000MHZ CROSS POLARISED WIDE

The mounting type of TGX.04.A.001 is Pole, Wall Mount.

The termination type of TGX.04.A.001 is SMA Male.

The protection rating of TGX.04.A.001 is IP67.
