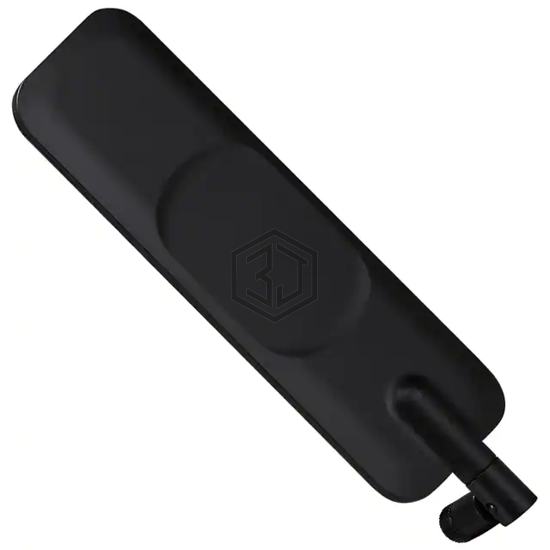

RF ANT 700MHZ/850MHZ WHIP TILT
TG.35.8113 is a RF Antennas manufactured by Taoglas Limited. RF ANT 700MHZ/850MHZ WHIP TILT. Key specifications: mounting type Connector Mount, termination SMA Male, power - max 5 W, frequency range 698MHz ~ 960MHz, 1.565GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz, 4.8GHz ~ 6GHz.
In Stock: 979
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 700MHz, 850MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz, 5.8GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.565GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz, 4.8GHz ~ 6GHz |
| Antenna Type | Whip, Tilt |
| Number of Bands | 10 |
| VSWR | - |
| Return Loss | - |
| Gain | 4.42dBi, 1.59dBi, 3.15dBi, 2.7dBi, 4.93dBi, 4.43dBi, 2.55dBi |
| Power - Max | 5 W |
| Features | - |
| Termination | SMA Male |
| Ingress Protection | - |
| Mounting Type | Connector Mount |
| Height (Max) | 8.740" (222.00mm) |
| Applications | CDMA, DCS, EDGE, GLONASS, GPRS, GPS, GSM, HSDPA, HSPA, LTE, PCS, UMTS, WCDMA, Wi-Fi |
Submit your RFQ for TG.35.8113 and get a quote within 24 hours.
