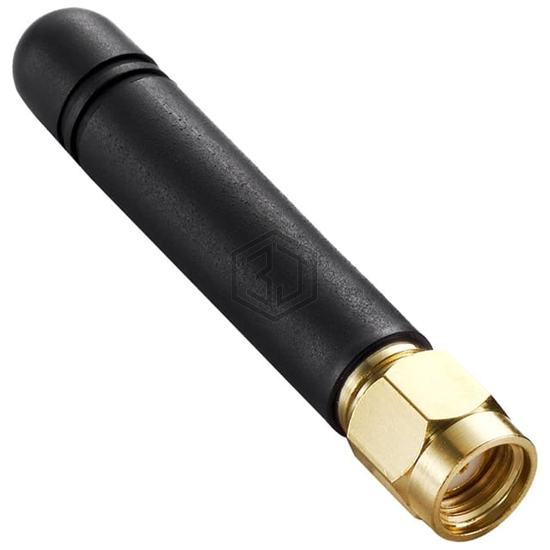

TG.22 3G/2G CELLULAR CONNECTOR M
TG.22.0151 is a RF Antennas manufactured by Taoglas Limited. TG.22 3G/2G CELLULAR CONNECTOR M. Key specifications: mounting type Connector Mount, termination RP-SMA Male, power - max 20 W, frequency range 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz.
In Stock: 61
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 860MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz |
| Frequency Range | 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz |
| Antenna Type | Whip, Straight |
| Number of Bands | 5 |
| VSWR | 3.5 |
| Return Loss | - |
| Gain | 1.42dBi, 1.91dBi, 2.51dBi, 3.32dBi, 2.89dBi |
| Power - Max | 20 W |
| Features | - |
| Termination | RP-SMA Male |
| Ingress Protection | - |
| Mounting Type | Connector Mount |
| Height (Max) | 1.929" (49.00mm) |
| Applications | CDMA, DCS, EDGE, GSM, GPRS, HSPA, PCS, UMTS, WCDMA |
