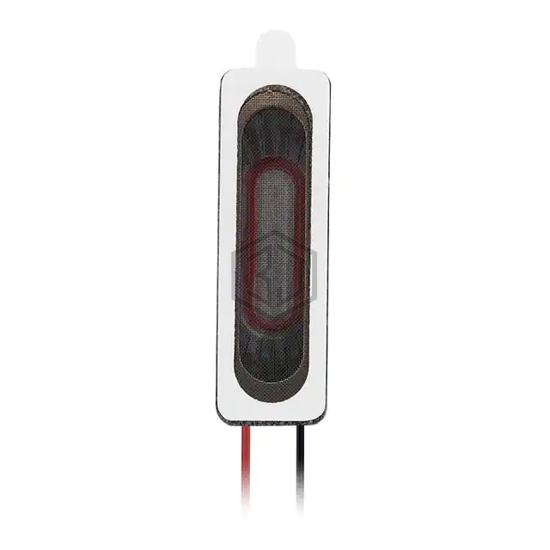

28X9MM MINI 8 OHM SPEAKER
SPKM.289.8.A is a Speakers manufactured by Taoglas Limited. 28X9MM MINI 8 OHM SPEAKER. Key specifications: size / dimension 1.102" L x 0.354" W (28.00mm x 9.00mm), termination Wire Leads with Connector, power - max 1 W, frequency range 10 Hz ~ 11 kHz.
In Stock: 988
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 10 Hz ~ 11 kHz |
| Frequency - Self Resonant | 1kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 82.00 |
| Efficiency - Testing | 500mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Oval, Rectangular Frame |
| Material - Cone | - |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads with Connector |
| Size / Dimension | 1.102" L x 0.354" W (28.00mm x 9.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for SPKM.289.8.A and get a quote within 24 hours.
