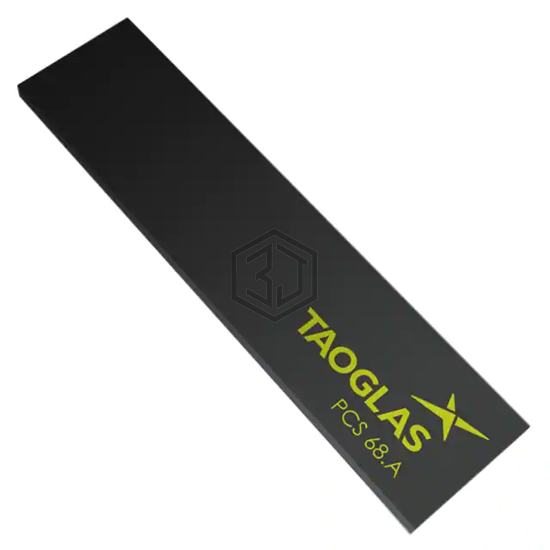

RF ANT 788.5MHZ PCB SMA FML SMD
PCS.68.A is a RF Antennas manufactured by Taoglas Limited. RF ANT 788.5MHZ PCB SMA FML SMD. Key specifications: mounting type Surface Mount, termination SMA Female, frequency range 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.925GHz.
In Stock: 4,481
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 788.5MHz, 1.4725GHz, 1.955GHz, 2.45GHz, 2.59GHz, 3.55GHz, 5.5375GHz |
| Frequency Range | 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.925GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 7 |
| VSWR | 3.5 |
| Return Loss | - |
| Gain | -1dBi, -2dBi, 3.8dBi, 2dBi, 4dBi, 4.5dBi, 4dBi |
| Power - Max | - |
| Features | - |
| Termination | SMA Female |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.059" (1.50mm) |
| Applications | 3G, 4G, LTE, Wi-Fi |
Submit your RFQ for PCS.68.A and get a quote within 24 hours.
