ACTIVE CELLULAR AND GNSS ANTENNA

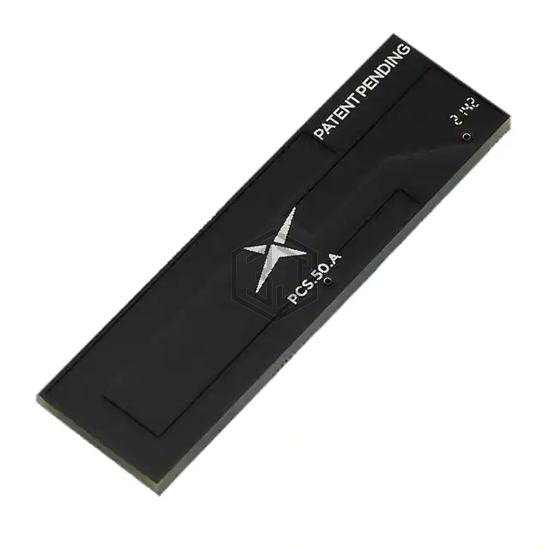

PCS.50A is a RF Antennas manufactured by Taoglas Limited. ACTIVE CELLULAR AND GNSS ANTENNA. Key specifications: mounting type Surface Mount, termination Solder, power - max 5 W, frequency range 698MHz ~ 746MHz, 746MHz ~ 800MHz, 800MHz ~ 880MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz.
In Stock: 989
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 722MHz, 773MHz, 840MHz, 920MHz, 1.5845GHz, 2.2GHz |
| Frequency Range | 698MHz ~ 746MHz, 746MHz ~ 800MHz, 800MHz ~ 880MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz |
| Antenna Type | Chip |
| Number of Bands | 6 |
| VSWR | - |
| Return Loss | - |
| Gain | -4.8dBi, -2.5dBi, -3dBi, -1.1dBi, 0.8dBi, 3.2dBi |
| Power - Max | 5 W |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.063" (1.60mm) |
| Applications | 3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, LTE, Wi-Fi |
Submit your RFQ for PCS.50A and get a quote within 24 hours.
