3J LIMITED
PC29.07.0100A
RF ANT 850MHZ/900MHZ FLAT PATCH

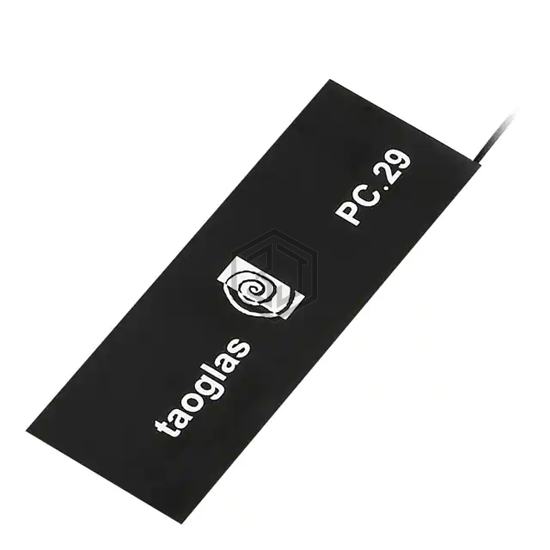

PC29.07.0100A is a RF Antennas manufactured by Taoglas Limited. RF ANT 850MHZ/900MHZ FLAT PATCH. Key specifications: mounting type Adhesive, termination U.FL (UMCC), IPEX MHF1.
In Stock: 62
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz |
| Frequency Range | - |
| Antenna Type | Flat Patch |
| Number of Bands | 5 |
| VSWR | 1.58, 1.78, 1.51, 1.38, 1.37 |
| Return Loss | -13dB, -11dB, -14dB, -16dB, -16dB |
| Gain | 0.01dBi, 1.2dBi, 2.66dBi, 1.25dBi, 1.43dBi |
| Power - Max | - |
| Features | - |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.031" (0.80mm) |
| Applications | CDMA, GSM, UMTS |
Frequently Asked Questions
PC29.07.0100A is a RF Antennas manufactured by Taoglas Limited. RF ANT 850MHZ/900MHZ FLAT PATCH
The mounting type of PC29.07.0100A is Adhesive.
The termination type of PC29.07.0100A is U.FL (UMCC), IPEX MHF1.
