WARRIORX WIDE-BAND(600MHZ-6000MH

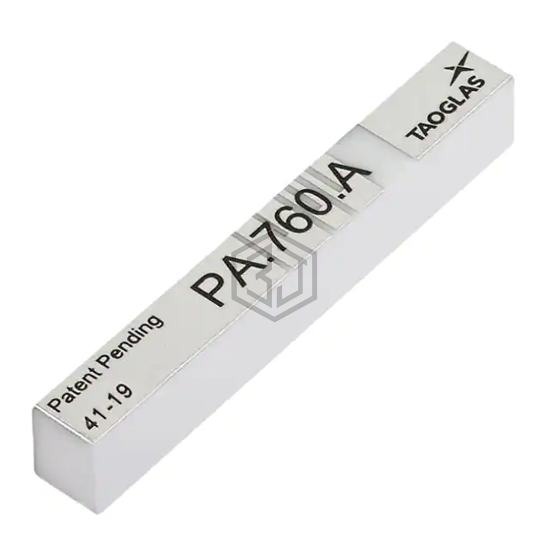

PA.760.A is a RF Antennas manufactured by Taoglas Limited. WARRIORX WIDE-BAND(600MHZ-6000MH. Key specifications: mounting type Surface Mount, termination SMA Female, frequency range 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 5.15GHz ~ 5.925GHz.
In Stock: 2,305
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.59GHz, 3.4GHz, 5.5375GHz |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 5.15GHz ~ 5.925GHz |
| Antenna Type | Chip |
| Number of Bands | 8 |
| VSWR | - |
| Return Loss | - |
| Gain | -0.7dBi, 0.5dBi, 1dBi, -0.5dBi, 3.4dBi, 2.9dBi, 4.3dBi, 3dBi |
| Power - Max | - |
| Features | - |
| Termination | SMA Female |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.197" (5.00mm) |
| Applications | LTE, Wi-Fi |
Submit your RFQ for PA.760.A and get a quote within 24 hours.
