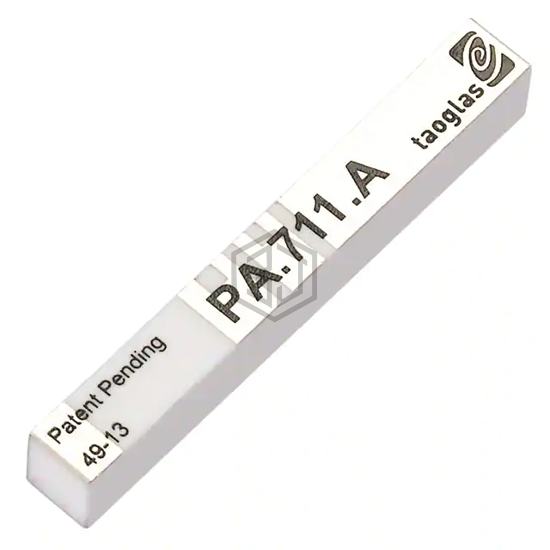

RF ANT 700MHZ/850MHZ CHIP SLD
PA.711.A is a RF Antennas manufactured by Taoglas Limited. RF ANT 700MHZ/850MHZ CHIP SLD. Key specifications: mounting type Surface Mount, termination Solder, power - max 5 W, frequency range 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz.
In Stock: 1,047
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz |
| Antenna Type | Chip |
| Number of Bands | 4 |
| VSWR | 3 |
| Return Loss | - |
| Gain | 1.0dBi, 2.9dBi, 4.1dBi, 2.8dBi |
| Power - Max | 5 W |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.197" (5.00mm) |
| Applications | CDMA, DCS, EDGE, GPRS, GSM, IMT, LTE, PCS, UMTS, WCDMA |
Submit your RFQ for PA.711.A and get a quote within 24 hours.
