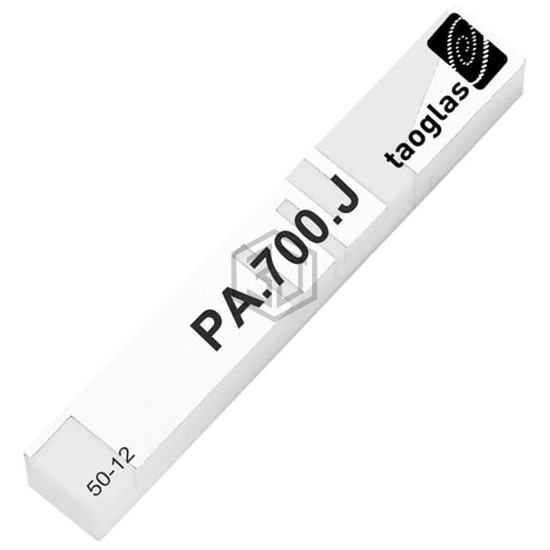

RF ANT 800MHZ/900MHZ CHIP SLD
PA.700.J is a RF Antennas manufactured by Taoglas Limited. RF ANT 800MHZ/900MHZ CHIP SLD. Key specifications: mounting type Surface Mount, termination Solder, power - max 5 W, frequency range 698MHz ~ 800MHz, 824MHz ~ 960MHz, 1.41GHz ~ 1.52GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz.
In Stock: 2,840
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 800MHz, 900MHz, 1.5GHz, 1.7GHz, 2.1GHz, 2.5GHz |
| Frequency Range | 698MHz ~ 800MHz, 824MHz ~ 960MHz, 1.41GHz ~ 1.52GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz |
| Antenna Type | Chip |
| Number of Bands | 6 |
| VSWR | 3.5 |
| Return Loss | -5dB, -14dB, -7dB, -7dB, -7.5dB |
| Gain | -3.6dBi, -0.5dBi, -1dBi, 0.5dBi, 2.7dBi |
| Power - Max | 5 W |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.197" (5.00mm) |
| Applications | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
