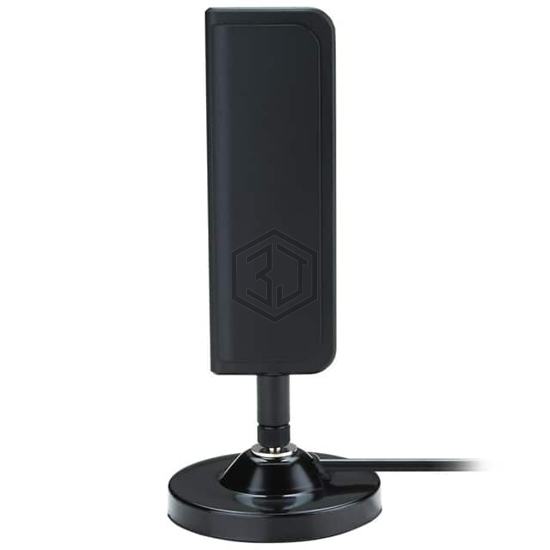

RF ANT 700/850MHZ WHIP STR MAGNT
MB.TG30.A.305111 is a RF Antennas manufactured by Taoglas Limited. RF ANT 700/850MHZ WHIP STR MAGNT. Key specifications: mounting type Magnetic, termination SMA Male, ingress protection IP67, power - max 50 W.
In Stock: 856
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 700MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz |
| Antenna Type | Whip, Straight |
| Number of Bands | 8 |
| VSWR | - |
| Return Loss | -5dB, -6dB, -5dB, -10dB, -5dB |
| Gain | 2.97dBi, 1.45dBi, 0.62dBi, 1.61dBi, 1.23dBi, 1.19dBi, 1.23dBi, 2.84dBi |
| Power - Max | 50 W |
| Features | Cable - 3m |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Magnetic |
| Height (Max) | 7.720" (196.10mm) |
| Applications | CDMA, DCS, EDGE, GPRS, GPS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA, Wi-Fi |
Submit your RFQ for MB.TG30.A.305111 and get a quote within 24 hours.
