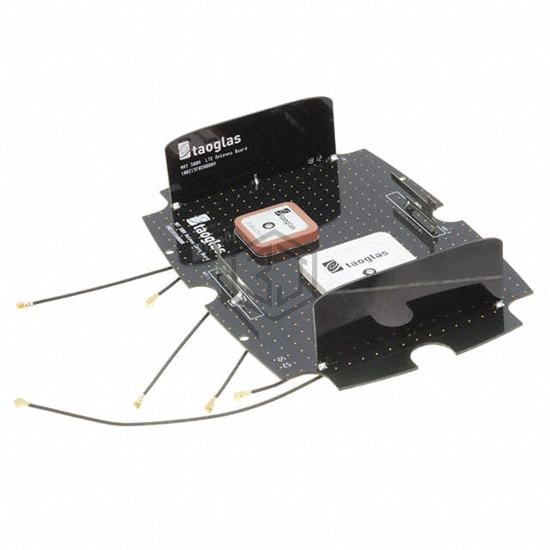

MAT.500.A 6IN1 INTEGRATED ANTENN
MAT.500.A is a RF Antennas manufactured by Taoglas Limited. MAT.500.A 6IN1 INTEGRATED ANTENN. Key specifications: mounting type Surface Mount, termination U.FL (UMCC), IPEX MHF1, frequency range 698MHz ~ 960MHz, 1.574GHz ~ 1.607GHz, 1.615GHz ~ 1.626GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 4.9GHz ~ 5.85GHz.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, General ISM, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 750.5MHz, 859MHz, 920MHz, 1.575GHz, 1.602GHz, 1.621GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 5.375GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.574GHz ~ 1.607GHz, 1.615GHz ~ 1.626GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 4.9GHz ~ 5.85GHz |
| Antenna Type | Ceramic Patch |
| Number of Bands | 12 |
| VSWR | 2, 2.2, 4 |
| Return Loss | - |
| Gain | 0.28dBi, 1.7dBi, 1.7dBi, 5.47dBi, 4.9dBi, 5.11dBi, 6.79dBi, 7.06dBi, 6.81dBi, 5.14dBi, 1.35dBi, 4.77dBi |
| Power - Max | - |
| Features | - |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 1.181" (30.00mm) |
| Applications | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
Submit your RFQ for MAT.500.A and get a quote within 24 hours.
