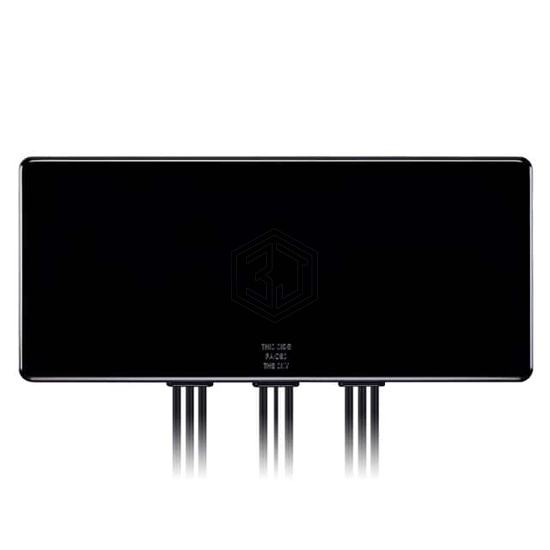

GUARDIANX 3M 9IN1 1*ACTIVE GNSS
MA9909.A.002 is a RF Antennas manufactured by Taoglas Limited. GUARDIANX 3M 9IN1 1*ACTIVE GNSS. Key specifications: mounting type Adhesive, termination SMA Male, ingress protection IP67, frequency range 698MHz ~ 960MHz, 1.574GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz.
In Stock: 42
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, General ISM, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 752MHz, 859MHz, 920MHz, 1.592GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.574GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz |
| Antenna Type | Module |
| Number of Bands | 8 |
| VSWR | 2 |
| Return Loss | - |
| Gain | 1.2dBi, 1.4dBi, 1.72dBi, -4.51dBi, 2.8dBi, 2.75dBi, 2.97dBi |
| Power - Max | - |
| Features | Cable - 1m, LNA, Filter |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Height (Max) | 0.650" (16.50mm) |
| Applications | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
Submit your RFQ for MA9909.A.002 and get a quote within 24 hours.
