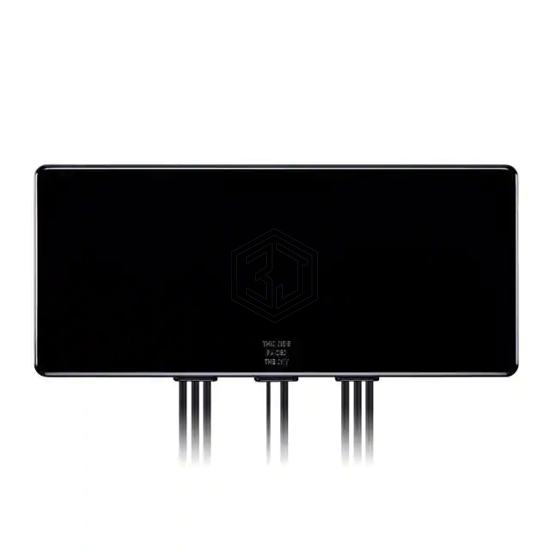

MA9908.A.001 - Taoglas Limited - RF Antennas

MA9908.A.001

Taoglas Limited

GUARDIANX 3M 8IN1 1*ACTIVE GNSS

MA9908.A.001 is a RF Antennas manufactured by Taoglas Limited. GUARDIANX 3M 8IN1 1*ACTIVE GNSS. Key specifications: mounting type Surface Mount, termination SMA Male, ingress protection IP67, frequency range 698MHz ~ 960MHz, 1.547GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 5.15GHz ~ 5.85GHz.

In Stock: 52

Product Attributes

AttributeValue
Product StatusActive
RF Family/StandardCellular, General ISM, Navigation, WiFi
Frequency GroupWide Band
Frequency (Center/Band)761MHz, 859MHz, 920MHz, 1.5785GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 5.5GHz
Frequency Range698MHz ~ 960MHz, 1.547GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 5.15GHz ~ 5.85GHz
Antenna TypeCeramic Patch
Number of Bands10
VSWR2
Return Loss-
Gain1.41dBi, 1.53dBi, 1.04dBi, 1.5dBic, 0dBic, 3.17dBi, 3.54dBi, 3.91dBi, 4.08dBi, 4.23dBi, 3.47dBi
Power - Max-
FeaturesCable - 3m, LNA, Filter
TerminationSMA Male
Ingress ProtectionIP67
Mounting TypeSurface Mount
Height (Max)0.650" (16.50mm)
ApplicationsDCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi

Frequently Asked Questions

MA9908.A.001 is a RF Antennas manufactured by Taoglas Limited. GUARDIANX 3M 8IN1 1*ACTIVE GNSS

The mounting type of MA9908.A.001 is Surface Mount.

The termination type of MA9908.A.001 is SMA Male.

The protection rating of MA9908.A.001 is IP67.
