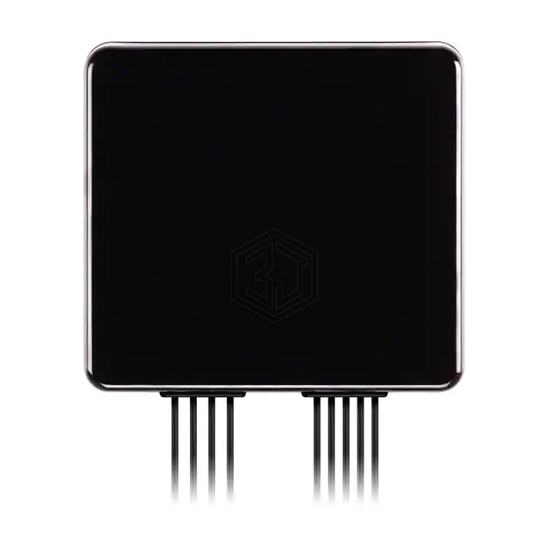

9IN1 COMBO ANTENNA
MA990.A.001 is a RF Antennas manufactured by Taoglas Limited. 9IN1 COMBO ANTENNA. Key specifications: mounting type Adhesive, termination SMA Male (2), ingress protection IP67, frequency range 617MHz ~ 960MHz, 1.207GHz ~ 1.239GHz, 1.241GHz ~ 1.248GHz, 1.427GHz ~ 1.518GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.564GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz, 1.71GHz ~ 2.2GHz, 2.39GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 788.5MHz, 1.223GHz, 1.2445GHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.5755GHz, 1.6015GHz, 1.955GHz, 2.54GHz, 4.15GHz, 5.5375GHz, 6.525GHz |
| Frequency Range | 617MHz ~ 960MHz, 1.207GHz ~ 1.239GHz, 1.241GHz ~ 1.248GHz, 1.427GHz ~ 1.518GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.564GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz, 1.71GHz ~ 2.2GHz, 2.39GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz |
| Antenna Type | Module |
| Number of Bands | 13 |
| VSWR | 3 |
| Return Loss | -10dB |
| Gain | 2.1dBi, 4.2dBi, 3.2dBi, 2.2dBi, 0.9dBi, 3.7dBi, 3.7dBi, 0.8dBi, 4dBi, 4.5dBi, 5.4dBi, 6.6dBi |
| Power - Max | - |
| Features | Cable - 1m, LNA, Filter |
| Termination | SMA Male (2) |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Height (Max) | 0.807" (20.50mm) |
| Applications | 3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, LTE, Wi-Fi |
Submit your RFQ for MA990.A.001 and get a quote within 24 hours.
