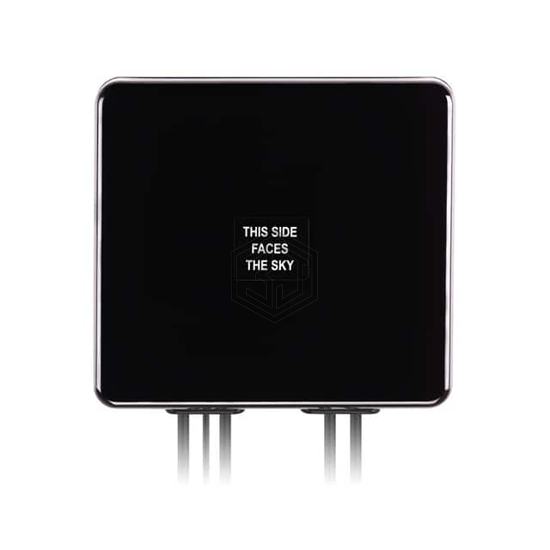

RF ANT 829MHZ/1.575GHZ MOD ADH
MA950.A.LBICG.005 is a RF Antennas manufactured by Taoglas Limited. RF ANT 829MHZ/1.575GHZ MOD ADH. Key specifications: mounting type Adhesive, termination SMA Male, ingress protection IP67, frequency range 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 5.8GHz.
In Stock: 70
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.575GHz, 1.94GHz, 2.4GHz, 2.59GHz, 3.45GHz, 5.8GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 5.8GHz |
| Antenna Type | Module |
| Number of Bands | 7 |
| VSWR | 2 |
| Return Loss | -10dB |
| Gain | 28dB |
| Power - Max | - |
| Features | Cable - 1m, LNA, Filter |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Height (Max) | 0.787" (20.00mm) |
| Applications | Beidou, GLONASS, GPS, GNSS, GSM, LTE, UMTS, Wi-Fi |
Submit your RFQ for MA950.A.LBICG.005 and get a quote within 24 hours.
