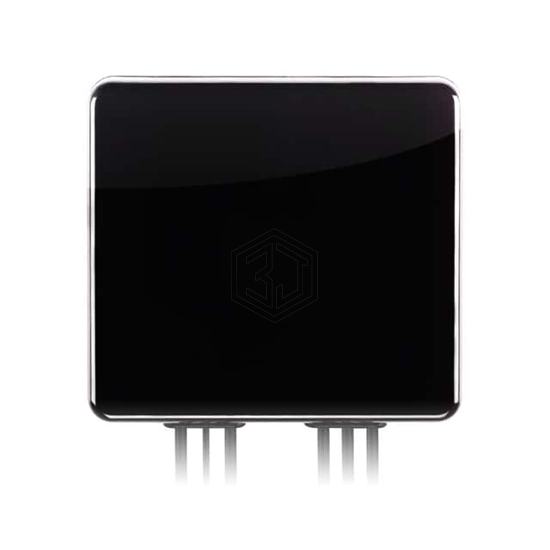

GUARDIAN MA931.W 6-IN-1 ADHESIVE
MA931.A.LBICGH.008 is a RF Antennas manufactured by Taoglas Limited. GUARDIAN MA931.W 6-IN-1 ADHESIVE. Key specifications: mounting type Adhesive, termination SMA Male, ingress protection IP67, power - max 50 W.
In Stock: 87
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 657.5MHz, 752MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 3.4GHz, 5.5GHz |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz |
| Antenna Type | Module |
| Number of Bands | 12 |
| VSWR | - |
| Return Loss | - |
| Gain | 3.81dBi, 3.81dBi, 3.73dBi, 4.06dBi, 4.61dBi, 3.91dBi, 3.98dBi, 4.25dBi, 4.6dBi, 4.32dBi, 4.48dBi |
| Power - Max | 50 W |
| Features | Cable - 2m |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Height (Max) | 0.787" (20.00mm) |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
Submit your RFQ for MA931.A.LBICGH.008 and get a quote within 24 hours.
