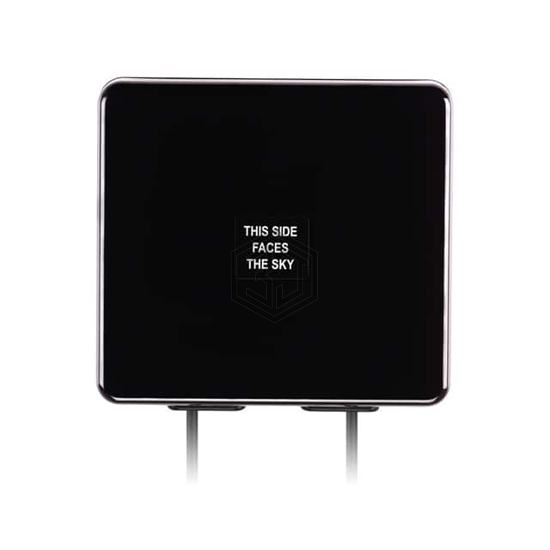

MA912.A.BI.001 2IN1 ADHESIVE 4G
MA912.A.BI.001 is a RF Antennas manufactured by Taoglas Limited. MA912.A.BI.001 2IN1 ADHESIVE 4G. Key specifications: mounting type Adhesive, termination SMA Male, ingress protection IP67, frequency range 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz.
In Stock: 79
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, General ISM |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz, 3.45GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz |
| Antenna Type | Module |
| Number of Bands | 8 |
| VSWR | 3 |
| Return Loss | - |
| Gain | 2.48dBi, 2.9dBi, 1.44dBi, 2.98dBi, 3.27dBi, 3.27dBi, 2.4dBi, 2.99dBi |
| Power - Max | - |
| Features | Cable - 3m |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Height (Max) | 0.787" (20.00mm) |
| Applications | DCS, GSM, LTE, PCS, UMTS |
