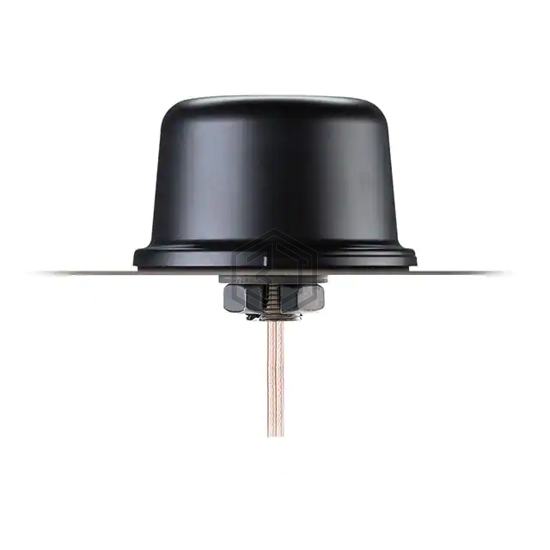

2 IN 1 GPS/GLONASS/GALILEO
MA841.A.BI.002 is a RF Antennas manufactured by Taoglas Limited. 2 IN 1 GPS/GLONASS/GALILEO. Key specifications: mounting type Panel Mount, termination SMA Male, ingress protection IP67, frequency range 698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz.
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz |
| Frequency Range | 698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz |
| Antenna Type | Dome |
| Number of Bands | 7 |
| VSWR | 3.5 |
| Return Loss | - |
| Gain | 1.51dBi, 3.56dBi, 2.09dBi, 1.95dBi, 2.72dBi, 1.95dBi, 1.98dBi, 2.37dBi, 1.32dBi, 1.79dBi, 1.04dBi, 2.36dBi, 5.91dBi, 4.99dBi |
| Power - Max | - |
| Features | Cable - 1m |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 2.260" (57.40mm) |
| Applications | 2G, 3G, 4G, LTE |
