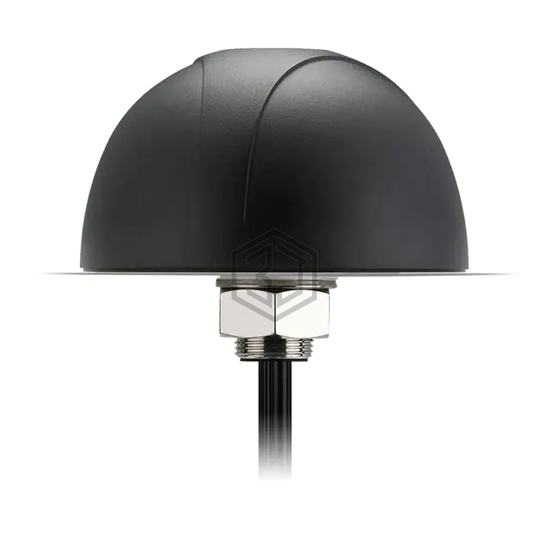

RF ANT DOME SMA MALE PANEL MT
MA760.A.ABIC.003 is a RF Antennas manufactured by Taoglas Limited. RF ANT DOME SMA MALE PANEL MT. Key specifications: mounting type Panel Mount, termination SMA Male (3), RP-SMA (1), ingress protection IP67, frequency range 698MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz, 4.7GHz ~ 5.9GHz.
In Stock: 132
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | - |
| Frequency Range | 698MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz, 4.7GHz ~ 5.9GHz |
| Antenna Type | Dome |
| Number of Bands | 5 |
| VSWR | 3, 1.7, 2 |
| Return Loss | - |
| Gain | 2.1dBi, 2.9dBi, 3.8dBi, 2.8dBi |
| Power - Max | - |
| Features | Cable - 3m, LNA, Filter |
| Termination | SMA Male (3), RP-SMA (1) |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 3.138" (79.70mm) |
| Applications | GLONASS, GPS, LTE, Wi-Fi |
Submit your RFQ for MA760.A.ABIC.003 and get a quote within 24 hours.
