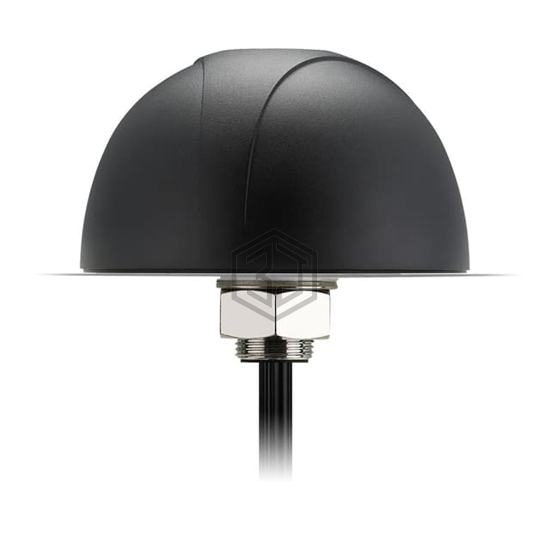

RF ANT 829MHZ/1.6GHZ DOME SMA ML
MA750.A.ABICG.003 is a RF Antennas manufactured by Taoglas Limited. RF ANT 829MHZ/1.6GHZ DOME SMA ML. Key specifications: mounting type Panel Mount, termination SMA Male, ingress protection IP67, frequency range 698MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz, 4.5GHz ~ 4.85GHz.
In Stock: 132
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.6GHz, 1.9GHz, 2.5GHz, 3.2GHz, 4.7GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz, 4.5GHz ~ 4.85GHz |
| Antenna Type | Dome |
| Number of Bands | 6 |
| VSWR | 3, 2 |
| Return Loss | - |
| Gain | 32dBi |
| Power - Max | - |
| Features | LNA, Filter |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 3.374" (85.70mm) |
| Applications | GLONASS, GPS, LTE, WLAN |
Submit your RFQ for MA750.A.ABICG.003 and get a quote within 24 hours.
