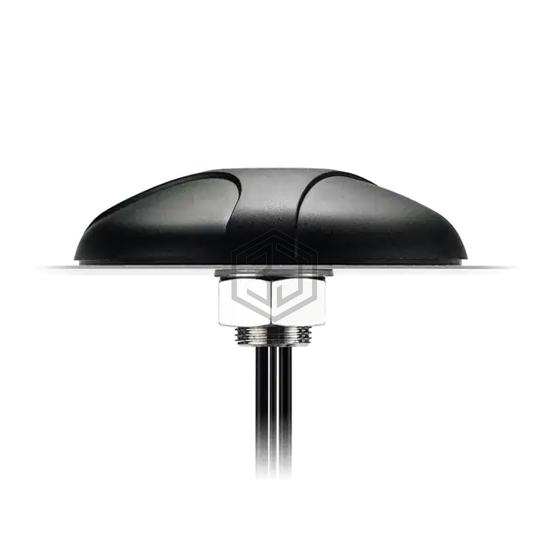

MA600.A.ABC.006 - Taoglas Limited - RF Antennas

MA600.A.ABC.006

Taoglas Limited

RF ANT 850MHZ/900MHZ DOME PNL MT

MA600.A.ABC.006 is a RF Antennas manufactured by Taoglas Limited. RF ANT 850MHZ/900MHZ DOME PNL MT. Key specifications: mounting type Panel Mount, termination SMA Male (3), ingress protection IP67, frequency range 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz.

In Stock: 178

Product Attributes

AttributeValue
Product StatusActive
RF Family/StandardCellular, Navigation, WiFi
Frequency GroupWide Band
Frequency (Center/Band)850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 4.85GHz, 5.2GHz, 5.65GHz
Frequency Range824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz
Antenna TypeDome
Number of Bands11
VSWR2, 1.6
Return Loss-
Gain2.1dBi, -0.2dBi, 2.9dBi, 3dBi, 5.1dBi, 2.1dBi, 2.9dBi, 3.8dBi, 2.8dBi
Power - Max-
FeaturesCable - 3m, LNA, Filter
TerminationSMA Male (3)
Ingress ProtectionIP67
Mounting TypePanel Mount
Height (Max)1.555" (39.50mm)
ApplicationsCDMA, GLONASS, GPS, GSM, HSPA, UMTS, Wi-Fi

Frequently Asked Questions

MA600.A.ABC.006 is a RF Antennas manufactured by Taoglas Limited. RF ANT 850MHZ/900MHZ DOME PNL MT

The mounting type of MA600.A.ABC.006 is Panel Mount.

The termination type of MA600.A.ABC.006 is SMA Male (3).

The protection rating of MA600.A.ABC.006 is IP67.
