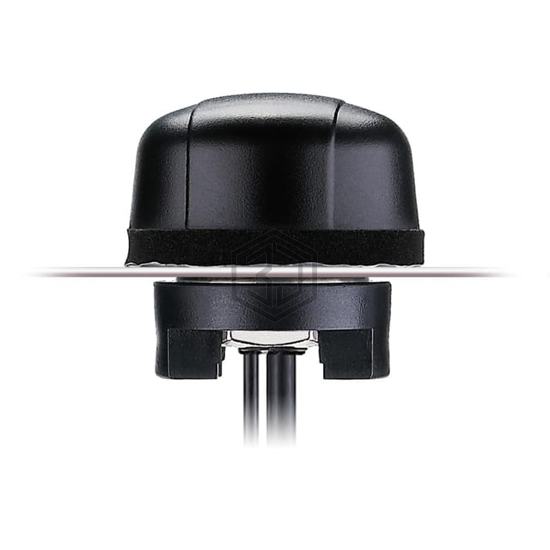

RF ANT 850MHZ/900MHZ DOME PNL MT
MA520.A.BC.008 is a RF Antennas manufactured by Taoglas Limited. RF ANT 850MHZ/900MHZ DOME PNL MT. Key specifications: mounting type Panel Mount, termination SMA Male, RP-SMA Male (2), ingress protection IP67, IP69K, power - max 10 W.
In Stock: 228
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 5GHz |
| Frequency Range | 850MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.483GHz, 5GHz ~ 5.825GHz |
| Antenna Type | Dome |
| Number of Bands | 7 |
| VSWR | - |
| Return Loss | -8.1dB, -8.5dB, -16.5dB, -20.3dB, -19.5dB, -18.0dB, -15.0dB |
| Gain | 1.0dBi, 1.5dBi, 0.4dBi, -0.5dBi, -1.1dBi, 2.1dBi, -3.2dBi |
| Power - Max | 10 W |
| Features | Cable - 2m |
| Termination | SMA Male, RP-SMA Male (2) |
| Ingress Protection | IP67, IP69K |
| Mounting Type | Panel Mount |
| Height (Max) | 1.122" (28.50mm) |
| Applications | CDMA, EVDO, GPRS, GSM, HSPA, UMTS, WCDMA, Wi-Fi |
Submit your RFQ for MA520.A.BC.008 and get a quote within 24 hours.
