RF ANT 1.575GHZ/2.4GHZ DOME CAB

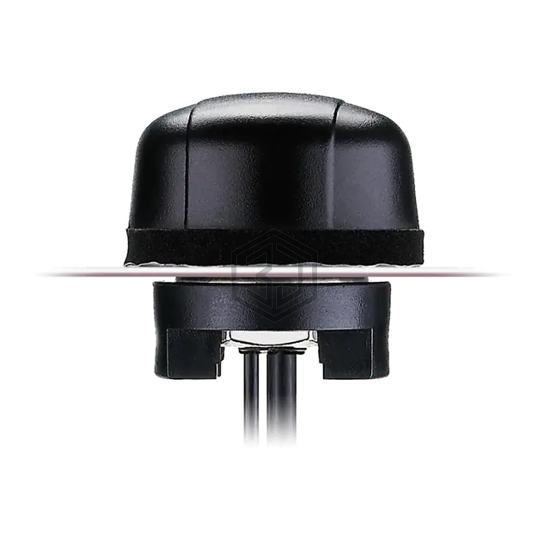

MA501.C.AC.001 is a RF Antennas manufactured by Taoglas Limited. RF ANT 1.575GHZ/2.4GHZ DOME CAB. Key specifications: mounting type Panel Mount, termination SMA Male (1), RP-SMA Male (1), ingress protection IP67, IP69K, frequency range 1.57GHz ~ 1.58GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.35GHz.
In Stock: 1,107
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | 802.15.4, Bluetooth, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 1.575GHz, 2.4GHz, 5.2GHz |
| Frequency Range | 1.57GHz ~ 1.58GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.35GHz |
| Antenna Type | Dome |
| Number of Bands | 3 |
| VSWR | 2, 1.8 |
| Return Loss | -12.1dB, -15.3dB |
| Gain | 2dBi, 4.05dBi, 4.37dBi |
| Power - Max | - |
| Features | Cable - 3m, LNA, Filter |
| Termination | SMA Male (1), RP-SMA Male (1) |
| Ingress Protection | IP67, IP69K |
| Mounting Type | Panel Mount |
| Height (Max) | 1.142" (29.00mm) |
| Applications | Bluetooth, GPS, WLAN, Zigbee™ |
Submit your RFQ for MA501.C.AC.001 and get a quote within 24 hours.
