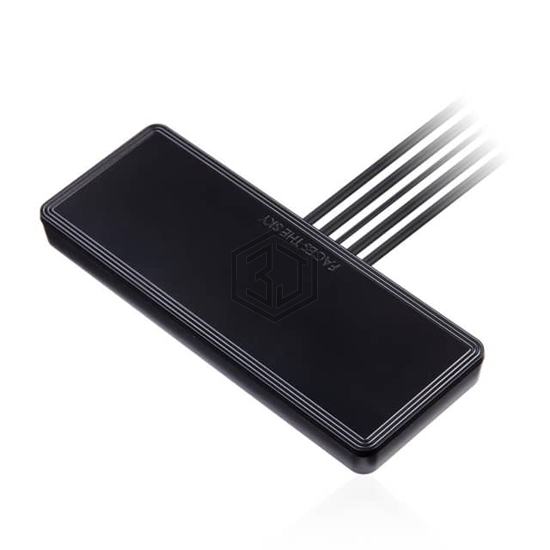

MA285.LBICG.001 - Taoglas Limited - RF Antennas

MA285.LBICG.001

Taoglas Limited

5IN1 GNSS:3M RG174 FAKRA C LTE(M

MA285.LBICG.001 is a RF Antennas manufactured by Taoglas Limited. 5IN1 GNSS:3M RG174 FAKRA C LTE(M. Key specifications: mounting type Adhesive, termination RP-SMA Male (2), SMA Male (3), ingress protection IP67, frequency range 698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz.

Datasheet Request a Quote

In Stock: 263

Product Attributes

AttributeValue
Product StatusActive
RF Family/StandardCellular, Navigation, WiFi
Frequency GroupWide Band
Frequency (Center/Band)750.5MHz, 869MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz
Frequency Range698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz
Antenna TypeModule
Number of Bands12
VSWR-
Return Loss-6dB, -10dB
Gain1.99dBi, 2.34dBi, 1.98dBi, 2.3dBi, 3.15dBi, 3.63dBi, 4.11dBi, 2.85dBi, -3.01dBi, -2.07dBi
Power - Max-
FeaturesCable - 2m, LNA, Filter
TerminationRP-SMA Male (2), SMA Male (3)
Ingress ProtectionIP67
Mounting TypeAdhesive
Height (Max)0.512" (13.00mm)
ApplicationsBeidou, DCS, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, Wi-Fi

Frequently Asked Questions

MA285.LBICG.001 is a RF Antennas manufactured by Taoglas Limited. 5IN1 GNSS:3M RG174 FAKRA C LTE(M

The mounting type of MA285.LBICG.001 is Adhesive.

The termination type of MA285.LBICG.001 is RP-SMA Male (2), SMA Male (3).

The protection rating of MA285.LBICG.001 is IP67.
