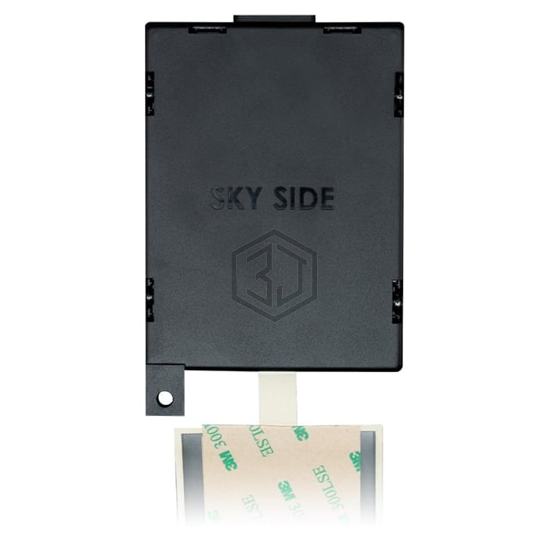

3IN1 ADHESIVE MOUNT 300MM RG-174
MA2330.A.ACT.002 is a RF Antennas manufactured by Taoglas Limited. 3IN1 ADHESIVE MOUNT 300MM RG-174. Key specifications: mounting type Surface Mount, termination SMB, Fakra, ingress protection IP21, frequency range 88MHz ~ 108MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.574GHz ~ 1.607GHz, 2.4GHz ~ 2.5GHz, 5GHz ~ 5.83GHz.
In Stock: 8,451
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 98MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.45GHz, 5.415GHz |
| Frequency Range | 88MHz ~ 108MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.574GHz ~ 1.607GHz, 2.4GHz ~ 2.5GHz, 5GHz ~ 5.83GHz |
| Antenna Type | Module |
| Number of Bands | 6 |
| VSWR | - |
| Return Loss | -10dB, -27.8dB, -10dB |
| Gain | 3.3dBi, 4dBi, 3.7dBi |
| Power - Max | - |
| Features | Cable - 300mm |
| Termination | SMB, Fakra |
| Ingress Protection | IP21 |
| Mounting Type | Surface Mount |
| Height (Max) | 0.585" (14.86mm) |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
Submit your RFQ for MA2330.A.ACT.002 and get a quote within 24 hours.
