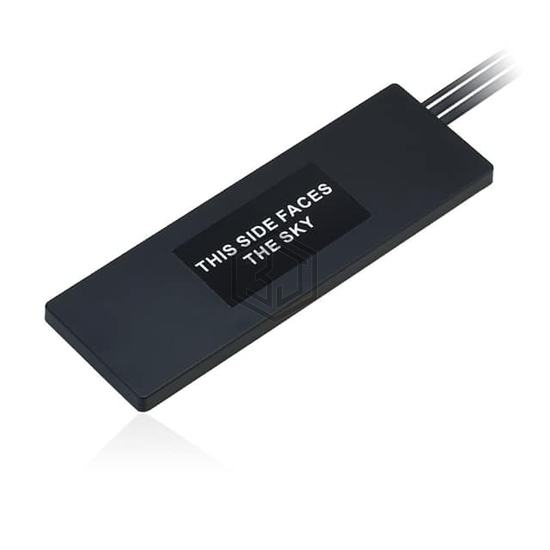

RF ANT 830MHZ/1.575GHZ BAR 3M
MA231.LBC.003 is a RF Antennas manufactured by Taoglas Limited. RF ANT 830MHZ/1.575GHZ BAR 3M. Key specifications: mounting type Adhesive, termination RP-SMA Male, SMA Male, ingress protection IP67, frequency range 700MHz ~ 960MHz, 1.575GHz, 1.602GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.48GHz, 2.5GHz ~ 2.69GHz, 5.15GHz ~ 5.85GHz.
In Stock: 311
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 830MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.4GHz, 2.6GHz, 5.5GHz |
| Frequency Range | 700MHz ~ 960MHz, 1.575GHz, 1.602GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.48GHz, 2.5GHz ~ 2.69GHz, 5.15GHz ~ 5.85GHz |
| Antenna Type | Flat Bar |
| Number of Bands | 6 |
| VSWR | 3 |
| Return Loss | - |
| Gain | 2.9dBi |
| Power - Max | - |
| Features | - |
| Termination | RP-SMA Male, SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Height (Max) | 0.354" (9.00mm) |
| Applications | Galileo, GLONASS, GPS |
Submit your RFQ for MA231.LBC.003 and get a quote within 24 hours.
