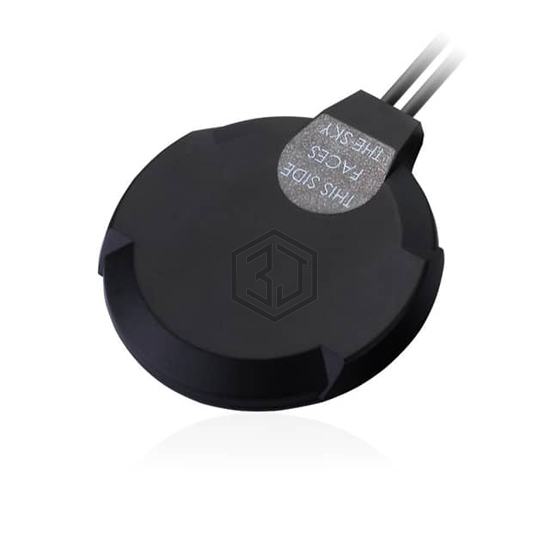

RF ANT 700MHZ/800MHZ MOD SMA ADH
MA220.LB.001 is a RF Antennas manufactured by Taoglas Limited. RF ANT 700MHZ/800MHZ MOD SMA ADH. Key specifications: mounting type Adhesive, termination SMA Male (2), ingress protection IP67, power - max 5 W.
In Stock: 411
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, General ISM, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 700MHz, 800MHz, 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz |
| Antenna Type | Module |
| Number of Bands | 11 |
| VSWR | 1.92 |
| Return Loss | -5dB |
| Gain | -1.54dBi, -0.53dBi, -0.53dBi, -1.07dBi, 3dBic, -0.1dBi, 0.72dBi, 0.89dBi, -2.4dBi, -1.59dBi |
| Power - Max | 5 W |
| Features | Cable - 3m, LNA |
| Termination | SMA Male (2) |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Height (Max) | 0.472" (12.00mm) |
| Applications | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, WCDMA, Wi-Fi |
