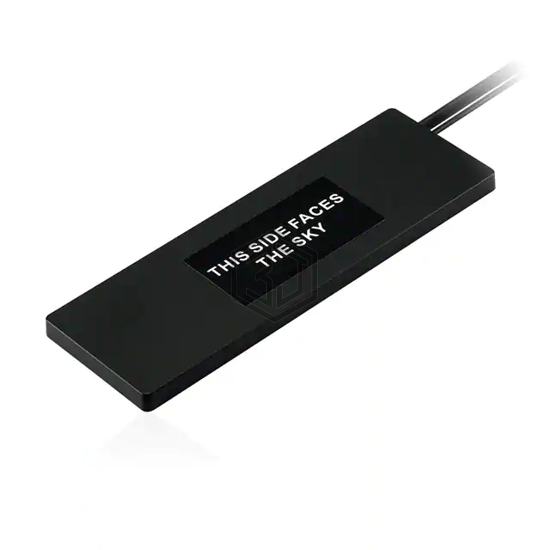

RF ANT 700MHZ/850MHZ FLAT BAR
MA208.A.AB.001 is a RF Antennas manufactured by Taoglas Limited. RF ANT 700MHZ/850MHZ FLAT BAR. Key specifications: mounting type Adhesive, termination SMA Male (2), ingress protection IP67, frequency range 700MHz, 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz.
In Stock: 231
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 700MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz |
| Frequency Range | 700MHz, 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz |
| Antenna Type | Flat Bar |
| Number of Bands | 7 |
| VSWR | 3.3, 3.6, 2.2 |
| Return Loss | - |
| Gain | 3.5dBic, 2.16dBi, 0.42dBi |
| Power - Max | - |
| Features | Cable - 3m, LNA, Filter |
| Termination | SMA Male (2) |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Height (Max) | 0.354" (9.00mm) |
| Applications | CDMA, DCS, GPS, GSM, LTE, PCS, UMTS |
Submit your RFQ for MA208.A.AB.001 and get a quote within 24 hours.
