SYNERGY 8-IN-1 GNSS SMA(M):4*5G/

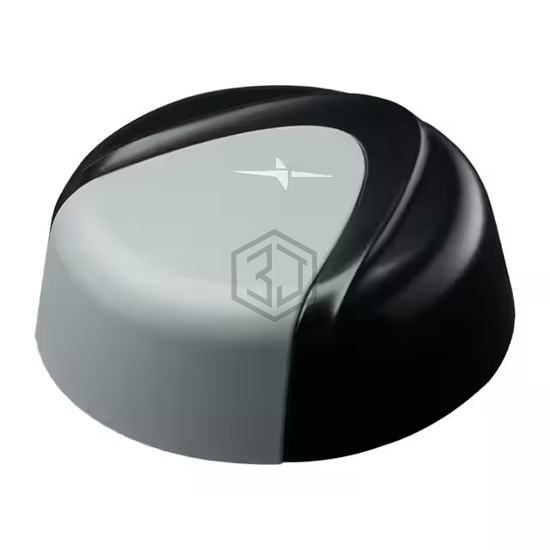

MA1508.AK.001 is a RF Antennas manufactured by Taoglas Limited. SYNERGY 8-IN-1 GNSS SMA(M):4*5G/. Key specifications: mounting type Panel Mount, termination RP-SMA Male, SMA Male, ingress protection IP67, power - max 2 W.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 2.45GHz, 3.55GHz, 5.5GHz, 5.5375GHz |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.88GHz, 1.92GHz ~ 1.99GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz |
| Antenna Type | Dome |
| Number of Bands | 15 |
| VSWR | 2, 2.5 |
| Return Loss | - |
| Gain | 0.25dBi, 1.44dBi, 2.93dBi, 3.76dBi, 3.75dBic, 4.44dBic, 4.54dBic, 4.55dBi, 2.93dBi, 3.97dBi, 5.06dBi, 3.12dBi, 5.99dBi, 7.03dBi, 6.28dBi |
| Power - Max | 2 W |
| Features | Cable - 300mm, LNA, Filter |
| Termination | RP-SMA Male, SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 2.263" (57.47mm) |
| Applications | 4G/5G, Beidou, Galileo, GLONASS, GPS, GNSS, Wi-Fi |
Submit your RFQ for MA1508.AK.001 and get a quote within 24 hours.
